Measuring your trolling motor shaft correctly prevents wasted money and fishing time. I’ve spent 20 years fixing and installing trolling motors, and I’ll share the exact measurement process that works for every major brand from Minn Kota to MotorGuide.
The proper shaft length keeps your propeller submerged 12 inches below the waterline in all conditions. Too short, and you’ll lose power in waves. Too long, and you risk damage in shallow water.
For bow-mounted motors:
- Position your boat on a level surface
- Measure from the mounting surface to the waterline
- Add 12 inches for prop clearance
- Add 12-18 inches extra for rough water (if you fish large lakes)
For transom-mounted motors:
- Measure from the top of the transom to the waterline
- Add 12 inches for prop depth
- Add 6-12 inches for wave action
“Getting the right shaft length is like having the right length fishing rod – it’s fundamental to performance,” as my old mentor used to say.
Pro tip: If you’re between sizes, always go longer. You can adjust a longer shaft up, but you can’t extend a short one.
These measurements work for both freshwater and saltwater applications, manual and electric steer models, and all common mounting configurations.
Understanding Shaft Length Basics
When it comes to trolling motor shaft length, getting the measurement right can make or break your fishing experience. We’re here to demystify shaft length selection and guarantee you’re equipped with the right knowledge.
Let’s start with the basics: shaft length is measured from the motor head’s base to the propeller housing’s top. For freshwater trolling motors, we’ll need the waterline measurement plus 22 inches. If you’re going for a saltwater trolling motor, add 25 inches instead – those waves don’t mess around.
The right shaft length isn’t just about numbers. We always factor in boat loading and potential bow rise. Additionally, understanding proper mounting flexibility is essential for optimal performance in various water conditions.
Remember: a shaft that’s too short leads to cavitation, while longer shafts keep your prop where it belongs – underwater and working efficiently.
Essential Measurement Tools and Techniques
To measure your trolling motor shaft accurately, you’ll need more than just eyeballing and guesswork.
Let’s grab a tape measure or ruler – that’s our essential tool for getting this right.
For bow mount motors, we’ll measure from the mounting surface to the water line, then add 22-30 inches depending on conditions.
When dealing with transom mount motors, measure from the transom mounting point to the water line and add 20 inches (25 for saltwater use).
Always measure the shaft vertically along its path to determine the correct shaft length.
Bow Mount Measurement Steps
Three key steps will guarantee you get the perfect bow mount measurement every time.

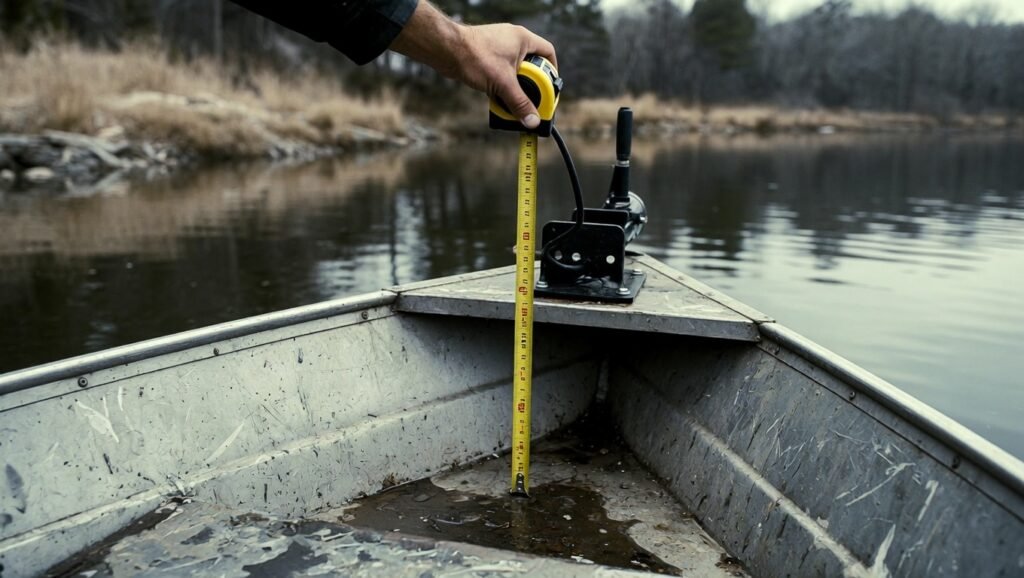

First, measure from your bow mount location down to the waterline with the boat loaded as you’ll typically use it.
Next, add 22 inches to that measurement for standard conditions – bump it up to 27-30 inches if you’re planning to tackle rough water.
Here’s where it gets personal: If you’re using a hand control head while standing, tack on another 9 inches to your shaft length.
Trust us, you’ll want that extra reach.
Don’t skip consulting the manufacturer’s specs with your final measurement – they know their stuff and might’ve specific recommendations for your model.
Precise shaft length equals perfect control on the water, ensuring optimal thrust requirements for your specific boat type.
Transom Mount Measurement Guide
Getting your transom mount shaft length right doesn’t require rocket science – just precise measurements and smart math.
Let’s make sure your trolling motors deliver peak thrust with the correct sizing. Start at the transom, measuring from your mounting location to the waterline. Add 20 inches to this measurement – that’s your baseline shaft length.
If you’re dealing with choppy water conditions, tack on another 5 inches for proper propeller depth. We always recommend going longer when choosing between shaft lengths since you can adjust down but can’t extend a short shaft. Additionally, ensuring proper voltage stability is crucial for maintaining efficient motor operation and overall performance.
Water Conditions and Length Adjustments

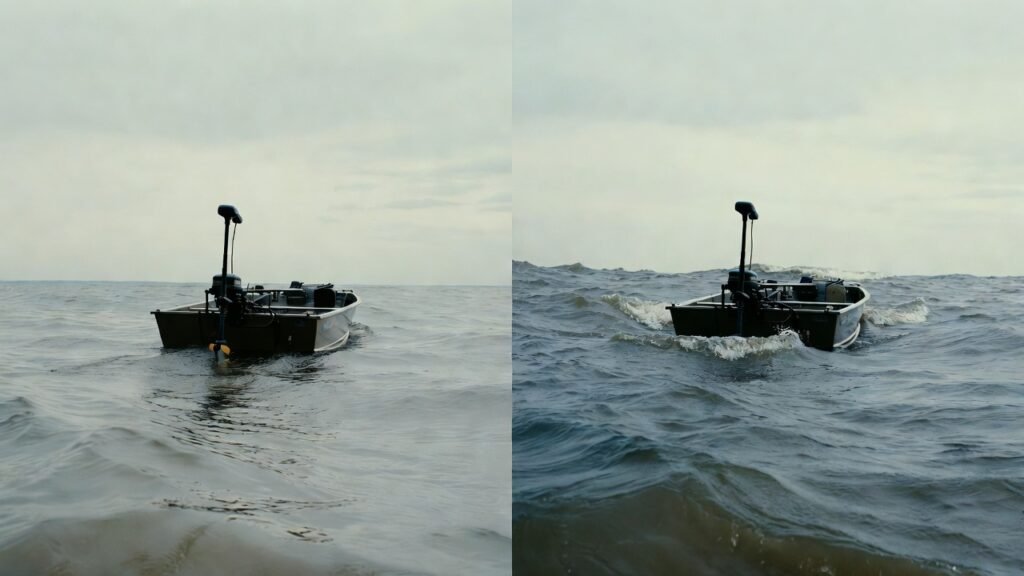

While freshwater boating lets you get away with shorter shafts, we’ll need to make smart adjustments based on your specific water conditions.
Let’s dial in your trolling motor’s shaft length for maximum thrust and efficiency across different fishing conditions.
- For freshwater setups, add 22 inches to your bow-to-waterline measurement – bump that to 25 inches for saltwater.
- Rough water conditions? Tack on another 5-10 inches to keep that prop submerged.
- Standing to steer? Add 12 inches to your calculation for proper control.
- Running a big boat over 22 feet? You’ll need 30-40 inches added to handle bow rise.
Get these measurements wrong, and you’ll waste power through cavitation.
Get them right, and you’ll command peak thrust in any conditions you tackle. Additionally, considering your boat’s thrust power options will help ensure you’re adequately equipped for varying conditions.
Common Measurement Mistakes to Avoid
Even experienced boaters make critical measurement blunders that’ll wreck their trolling motor’s performance.
Getting the right motor with proper length for your trolling setup isn’t just important – it’s vital for higher thrust and efficiency.
We’ve seen it countless times: boaters measure from the wrong point. Always measure from the base of the motor head to the propeller housing.
Don’t forget to factor in your boat’s bow rise when loaded – that extra weight changes everything. For rough waters, we add 5-10 inches to guarantee peak performance.
And here’s a non-negotiable: check those manufacturer specifications. They’re not suggestions; they’re requirements.
Additionally, understanding hydrodynamic forces can help you determine the optimal motor length for your specific boat design and water conditions.
When in doubt, we strongly recommend double-checking your measurements with a dealer. These simple steps prevent expensive mistakes.
Frequently Asked Questions
How Do You Measure Shaft Length on a Trolling Motor?
In a million measurements we’ve done, here’s our secret: measure from the bottom of your trolling motor head down to the propeller housing’s top for perfect shaft length compatibility with your boat.
How Do You Measure a Motor Shaft?

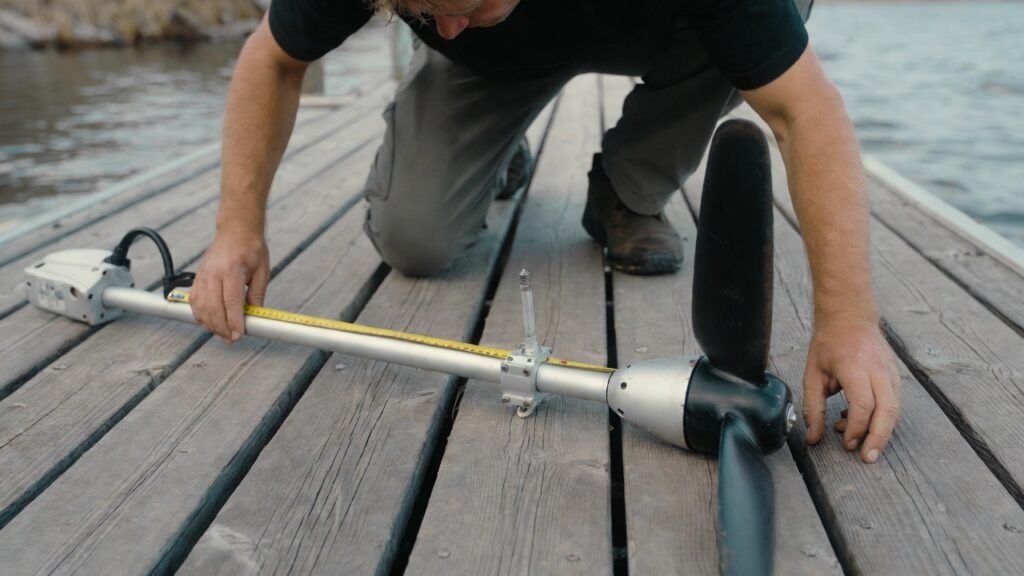

We’ll measure the motor shaft length from the base of the head to the propeller housing’s top. Lay the trolling motor flat and use accurate measurement tools to check shaft specifications.
How Do You Measure Trolling?
We’ll need to contemplate trolling motor types and shaft length importance when measuring. Let’s check motor power ratings, review installation tips, and understand key features for proper maintenance practices.
What Size Trolling Motor Do I Need for a 14-Foot Boat?
We’d recommend a trolling motor with at least 30 lbs of thrust for your 14-foot boat, considering boat weight capacity and fishing conditions. Compare motor types and battery requirements before making your final selection.
